Description
Areca ARC-9200 series (12Gb/s SAS 1U RAID Head)

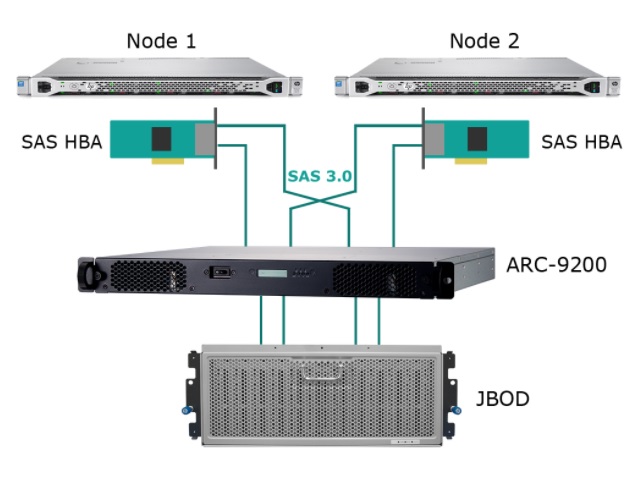

ARC-9200 1U RAID head supports flexibility interface configuration; 8 x 12Gb/s SAS ports, 4 x 16Gb/s fibre channels or 2 x 10Gb/s iSCSI channel host and 8 x 12Gb/s SAS ports expander for performance and easy expansion. When used with 12Gb/s SAS expanders, the controller can provide up to (256) devices through one or more SAS JBODs, making it an ideal solution for enterprise class storage applications that called for maximum configuration flexibility.
The RAID head raises the standard to higher performance levels with several enhancements including new high performance 1.2 GHz dual core ROC processor, a DDR3-1866 memory architecture and high performance PCIe 3.0 interface bus interconnection. Each controller includes one 204-pin SO-DIMM socket with default 2GB upgrade to 8GB DDR3-1600, 1RX8/2RX8, ECC SDRAM.
| ARC-9200 Series SAS 1U_RAID Head | |||

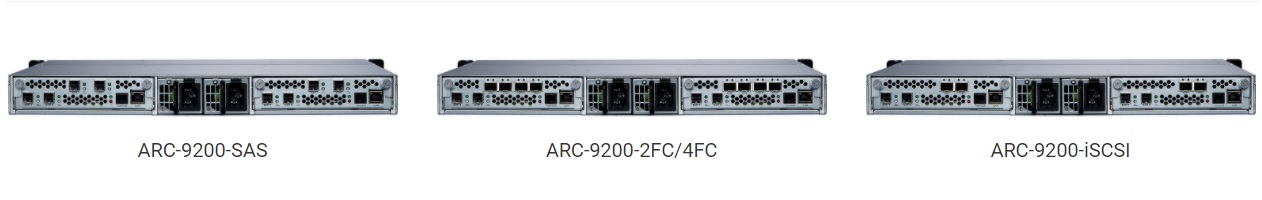

| -SAS- ARC-9200SS-DR1 ARC-9200SD-DR1 |
-Fibre- ARC-9200FS-DR1 ARC-9200FD-DR1 ARC-9200FS5QR1 ARC-9200FD5QR1 |
-iSCSI- ARC-9200IS-DR1 ARC-9200ID-DR1 |
|
| Form Factor | 1U, 19-inch rackmount chassis | ||
| Host Interface | • SAS-to-SAS 2 x 12Gb/s SAS Ports |
• Fibre-to-SAS 2 x 16Gb/s Fibre channels 4 x 32Gb/s Fibre channels |
• iSCSI-to-SAS 2 x 10Gb/s iSCSI channels |
| Host Connector | 2 x SFF-8644 | 2/4 x SFP+ | 2 x SFP+ |
| JBOD Expansion Port | Dual downstream SFF-8644 (4 x 12Gb/s) expansion ports per controller | ||
| Max. Drives per RAID Ctrl | Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSD, using 12Gb/s SAS JBOD | ||
| Data Transfer Rate | Up to 12Gb/s per port | ||
| RAID_on_Chip | Dual Core PPC476 1.2 GHz ROC | ||
| Cache Protection | One 204-pin SO-DIMM socket for 2GB (default) DDR3-1600, 1RX8/2RX8, ECC module - up to 4GB or 8GB DDR3-1600, 1RX8/2RX8, Unbuffered/Registered ECC module |
||
| Operating Systems | OS Independent | ||
| Power Supply | • Dual 200W hot swap and redundant with PFC, N+1 design • AC voltage: 110V@40A, 230V@80A for input inrush current with PFC (auto-switching) • Supports 90-264 VAC input at 47-63 Hz frequency |
||
| Physical Dimensions (H x W x D) |
• Without handles: 43.5 x 445 x 400 mm (1.7 x 17.5 x 15.7 in) • With handles: 43.5 x 482 x 436 mm (1.7 x 22.9 x 17.1 in) |
||
| Weight | • Single: 27 kg (59.5 lb) • Dual: 28 kg (61.7 lb) |
||
| RAID Features | • RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD • Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID 100) • Automatic drive failover and detection and rebuild using multiple Global, Dedicated or Enclosure hot- spare drives • Multiple pairs SSD/HDD disk clone function • SSD automatic monitor clone (AMC) support • SED (Self-encrypting drives) function support • Support for native 4K and 512 byte sector devices • Support HDD firmware update • Hot-swap and redundant components for increasing availability |
||
| RAID Management Software | • Flashable firmware via RS-232 and LAN port • Push Buttons and LCD for setup and status • Firmware-embedded manager via RS-232 port • Browser-based RAID manager, SMTP manager, SNMP agent and Telnet function • API with sample and functional code • ArcCLI (command-line interface) • ArcSAP monitor utility easily manage multiple RAID units |
||
| Availability and Reliability | • Redundant controller operation with active/active and fail-over/fail-back function • Dual-active RAID controller with cache mirroring through dedicated high speed bus • Automatic synchronization of firmware version in the dual-active mode • Multi-path & load-balancing support |
||
| Operating Temperature | 0 °C to 40 °C | ||
| Operating Humidity | 10% to 80%, non-condensing | ||
| Regulatory Certification | CE, FCC | ||
| Warranty | 3 years | ||
Optional battery back-up module
Arc-1883-BAT
Arc-1883-CAP
